Total series of magnetizer advantage
Uses high-voltage pulse capacitors
Constant current charging
Sine or index pulse output
The repeat precision of the charge voltage is ±1V
High efficient output current, very low internal impedance
High energy up to 350KJ
Short pulse up to 100 μS
Modular architecture
Industry standard connections for easy integration in production line
According to the needs of customers, interactive interface can be applied
Safety features
Pointer voltmeter configuration, show continuous
Internal discharge
Automatic power-off when Uncover

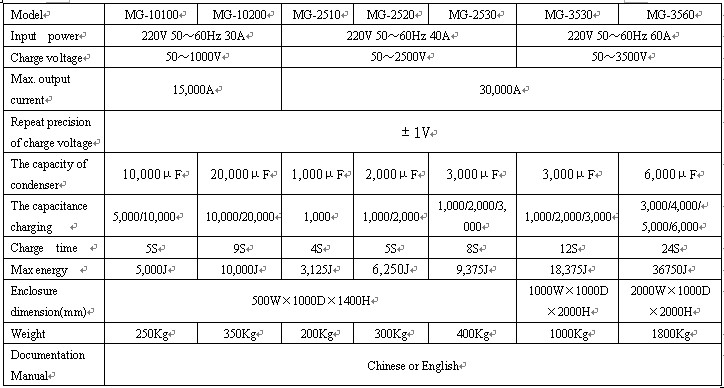

MG series magnetizer
Built-in famous brand PLC
Digital display of preset voltage and output current
Charge time is adjustable
Capacity of condenser can be switched and capacity indication
Various operating modes
The counting function
|
